Powermax 30 AIR plasma system Hypertherm
Despite its small size, the Powermax30® AIR delivers big performance. This small air plasma cutter — the smallest, lightest handheld plasma cutter in its class — includes its own built-in air compressor. That’s right, it’s a small plasma cutter with a built-in compressor so you can use the Powermax30 AIR anywhere there’s single-phase power. Just plug it in, attach the work clamp and you’re ready to cut. It’s even dual-voltage. You can use it as a 120 V plasma cutter or at 240 V. Regardless of which power input (120 V or 240 V) you choose, we think you’ll agree the Powermax30 AIR is the best plasma cutter with built-in compressor available today.
- Benefits
- Specifications
- Cut capacity
- Resources
Benefits
Easy to set up and operate

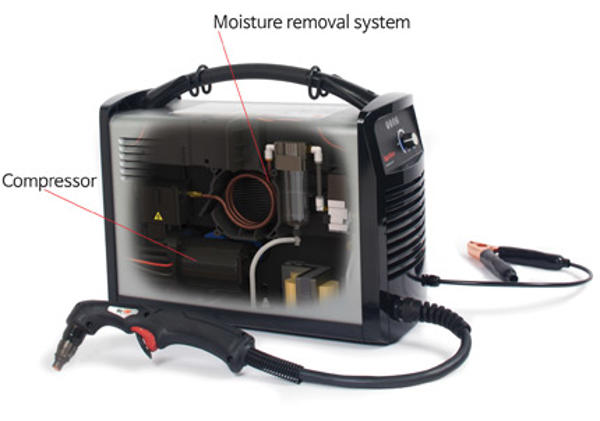

- Internal compressor eliminates the need for an external air compressor and filter
- Plug into any 120 or 240 V power (convenient Auto-Voltage™ technology and plug adapters included)
Superior performance in a compact package
- Patent-pending consumable design enables consistent cutting by optimizing the airflow from the compact, internal compressor
- Quickly cut metal grate or rusted metal without retriggering with the continuous pilot arc feature
- Fast cutting speeds and superior cut quality let you finish jobs quicker, with fewer secondary operations

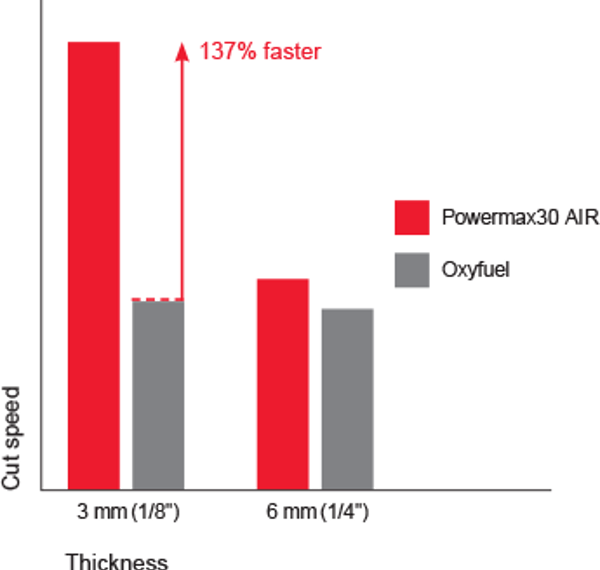

Relative cut performance on mild steel (chart)
Exceptional versatility
- Just one tool is all you need to cut a variety of metal types and thicknesses
- Small size and light weight let you take the Powermax30 AIR to the work, rather than bringing the work to the system – an ideal solution for a wide range of cutting applications
- Built to withstand heavy-duty use in the most demanding environments
Specifications
| Input voltages | 120-240 V, 1-PH, 50/60 Hz |
|---|---|
| Input current @ 2.5 kW | 120-240 V, 1-PH, 29-15 A |
| Output current | 15-30 A |
| Rated output voltage | 83 VDC |
| Duty cycle @ 40°C (104°F) | 35%, 240 V 20%, 120 V |
| Open circuit voltage (OCV) | 256 VDC |
| Dimensions with handles | 420 mm (16.5″) D; 195 mm (7.7″) W; 333 mm (13.1″) H |
| Weight w/ 4,5 m (15′) torch | 13.5 kg (29.8 lbs) |
| Input power cable length | 3 m (10′) |
| Power supply type | Inverter – IGBT |
| Engine drive requirement | 5.5 kW for full 30 A output |
| Certifications | CSA-certified for use in the Americas and Asia, except China CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. |
| Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty. |
Cut capacity
| Capacity | Thickness | Cut speed |
|---|---|---|
| Cutting | ||
| Recommended | 8 mm (5/16″) | 500 mm/min (20 ipm) |
| 10 mm (3/8″) | 250 mm/min (10 ipm) | |
| Severance | 16 mm (5/8″) | 125 mm/min (5 ipm) |
Cutting with 120 V input power
The maximum recommended output of 20 A, the cut capacities are:
- 3 mm (10 gauge) at 762 mm/min (30 ipm)
- 6 mm (1/4″) at 355 mm/min (14 ipm)
- 10 mm (3/8″) at 125 mm/min (5 ipm)
