Overview

The BUG-O DC-IV is a powerful mechanised travel carriage designed for controlled, repeatable movement in welding and cutting applications. Built around a dual speed range, positive rack and pinion drive system, the DC-IV provides stable travel on aluminium rail systems and is ready for mounting welding or cutting attachments and accessories.

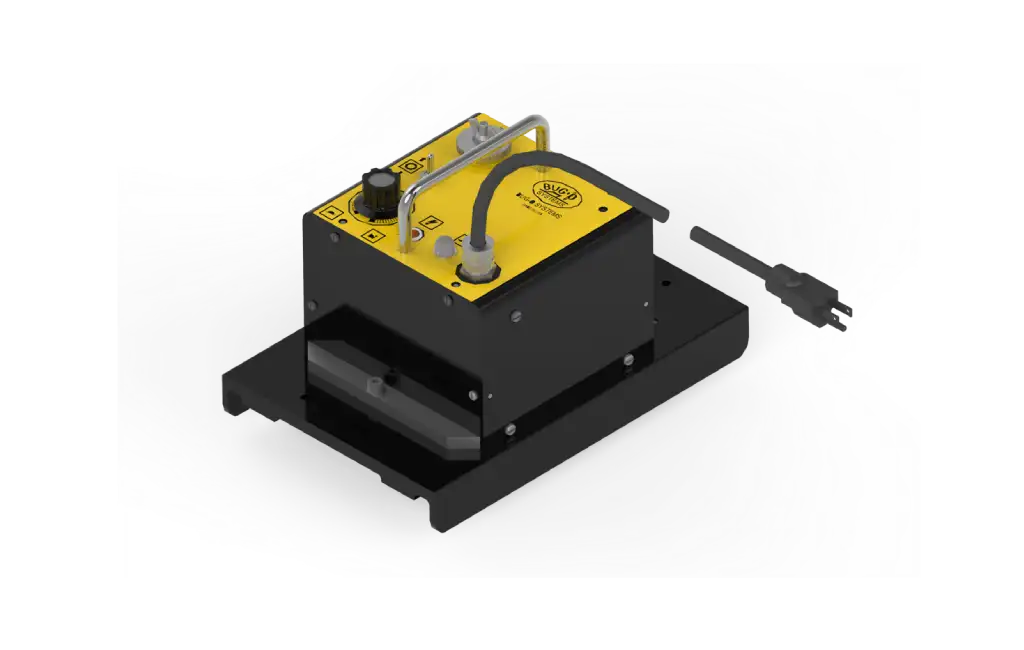

The unit consists of a DC-IV drive mounted on a 12″ / 305 mm carriage. Its carriage is manufactured from high-strength, lightweight aluminium alloys, while the wheel arrangement locks the carriage securely to the rail in all positions. This makes the DC-IV a practical solution for straight-line work, large-diameter applications, and demanding industrial environments where smooth, controlled travel directly affects weld or cut quality.

With multiple speed ranges, robust mechanical engagement, adjustable carriage wheels, sealed bearings, and corrosion-resistant plated steel components, the DC-IV is engineered for reliability, productivity, and consistent process control in fabrication, maintenance, shipbuilding, tank work, structural steel, and general industrial welding or cutting operations.

Recommended options and accessories

1. Pendant Control BUG-1630-XX: Factory-installed remote control option available in multiple cable lengths. Includes speed control knob and forward-off-reverse travel switch.
2. Pendant Control with Weld Starter BUG-1635-XX: Factory-installed pendant with speed control, forward-off-reverse switch, and weld contactor switch.
3. Digital Readout BUG-1764-KIT: Displays machine travel speed, helping operators set and repeat precise travel parameters.
4. Limit Switch Kit BUG-9770: Stops tractor movement when the limit switch is activated, improving process control at the end of travel.
5. Stepping Module BUG-9870: Provides adjustable timed power output to step tractor movement after the limit switch is tripped and released.
6. Heavy-Duty Racking Upgrade Kit: Suitable for harsh industrial environments. Available in 19″, 33″ and 40″ lengths, with a rigid torch holder for stable torch support.
7. Aluminium Rigid Rail ARR series: Recommended for straight-line applications requiring accurate and repeatable travel.
8. Aluminium Flex Rail AFR series: Suitable for large-diameter applications where the rail must follow a curved workpiece.
9. Magnet support assemblies ARM / AFR series: Used to secure rail to ferrous workpieces, with high-heat versions available for elevated-temperature applications.
10. Vacuum support kits ARV series: Recommended for non-ferrous materials where magnetic attachment is not possible. A vacuum pump kit is required.

Key points

• Dual speed range travel carriage for welding and cutting applications.
• Positive rack and pinion drive for controlled, repeatable movement.
• Mounted on a 12″ / 305 mm carriage.
• Runs on aluminium rigid rail, aluminium flex rail, or bent rigid rail.
• Suitable for straight-line and large-diameter work.
• High-strength, lightweight aluminium carriage construction.
• Adjustable carriage wheels with permanently lubricated sealed bearings.
• Infinitely variable speed control.
• Forward-off-reverse travel switch.
• Factory-installed pinion for high-torque, low-speed operation.
• Alternate pinion for low-torque, high-speed operation.
• Compatible with welding, cutting, racking, cable, rail, magnet and vacuum accessories.
• Made in USA.

Technical advantages

The main technical advantage of the DC-IV is its positive rack and pinion drive system. Unlike simple friction-based movement, the pinion engages directly with the rack on the rail, giving the machine controlled travel and improved consistency during welding or cutting operations. This is especially important when travel speed, arc stability, torch position and process repeatability influence the final result.

The dual speed concept gives the operator a wider working envelope. The factory-installed pinion provides a high-torque, low-speed range for heavier-duty travel requirements, while the alternate pinion can be installed to bypass the bull gear and deliver a low-torque, high-speed range. This allows the same platform to support different applications, from slower welding travel to faster cutting movement.

The carriage design also supports operational reliability. The wheels run in opposed recessed rail grooves, helping lock the carriage to the rail. Two of the four wheels are adjustable, allowing better alignment and secure engagement. The permanently lubricated sealed bearings reduce maintenance requirements, while plated steel components improve corrosion resistance in industrial environments.

Applications

The BUG-O DC-IV is suitable for mechanised welding and cutting tasks where manual torch movement is too inconsistent, too tiring, or insufficiently repeatable. It can be used for straight-line welding, straight-line cutting, large-diameter work using flex rail, and applications where controlled travel along a fixed path improves quality and productivity.

Typical use cases include fabrication workshops, structural steel production, shipyards, tank and vessel work, maintenance operations, repair environments, heavy industrial facilities, and field work where the machine must be brought to the workpiece instead of moving the workpiece to a fixed table system.

With the correct rail support system, the DC-IV can be used on ferrous and non-ferrous materials. Magnetic rail supports are suitable for ferrous materials, while vacuum support systems are available for non-ferrous metals where magnets cannot hold.

Why choose this product

The DC-IV is a strong choice for companies that need to improve process consistency without moving immediately to a large fixed automation system. It offers a compact, rail-based mechanised platform that can be adapted to different welding and cutting configurations, helping reduce operator fatigue, improve travel consistency, and support better visual quality in the finished weld or cut.

Its modular accessory ecosystem also makes it commercially attractive. Operators can configure the machine with pendant controls, digital readout, limit switches, stepping control, heavy-duty racking, different carriage options, rail systems, magnetic supports and vacuum supports. This allows the DC-IV to be adapted to the application instead of forcing the application to fit a single fixed machine configuration.

For production teams, the strategic value is simple: more controlled motion, better repeatability, reduced manual variability, and improved productivity in welding and cutting operations.
